Ready for merge

README.md

@@ -2,25 +2,33 @@

 This package contains **independent** widgets (no components) written for [Elm-Ui](https://package.elm-lang.org/packages/mdgriffith/elm-ui/latest/). These widgets have no dependencies to other parts of this package. So you can just use as much as you need.

-* It also supports custom themes and has a material design theme already ready to use.
 * [Examples of all widgets can be found here](https://orasund.github.io/elm-ui-widgets/3.0.0/).
-* It is highly customizable. Checkout [Widget.Customize](https://package.elm-lang.org/packages/Orasund/elm-ui-widgets/latest/Widget-Customize) for more information.
+* It has a [Material Design Theme](/Widget-Material) ready to use. Additionally it also supports custom themes.
+* It is highly customizable. Checkout [Widget.Customize](/Widget-Customize) for more information.

 Feel free to start an [issue on the repository](https://github.com/Orasund/elm-ui-widgets/issues) if you have any questions.

-![Example using the Material Design style](https://orasund.github.io/elm-ui-widgets/assets/material-style.png)
+[![Example using the Material Design style](https://orasund.github.io/elm-ui-widgets/assets/material-style.png)](https://orasund.github.io/elm-ui-widgets/3.0.0/)

-## Summary
+## Table of Contents

-* Each widget comes with a _Widget Type_ and a _Style Type_. The Widget Type is an abstract representation of the widget and the Style Type has all styling attributes.
-* Widget Types can be used as building Blocks for more complicated Widgets
-   (Button -> Select Buttons -> Menu -> Layout)
+* [Example](#example)
+  * [Style Type](#style-type)
+  * [Styles](#styles)
+* [Reusable Views vs. Components](#reusable-views-vs-components)
+* [Alternatives](#alternatives)
+* [Motivation](#motivation)
+* [Changelog](#changelog)

 ## Example

-Let's look at the button widget.
+Each widget comes with a _Widget Type_ and a _Style Type_.
+* The Widget Type is an abstract representation of the widget. They can be used as building Blocks for more complicated Widgets.
+* Style Type has all styling attributes (similar to Element.Attribute).

-** Style Type**
+As example, consider the button widget.
+
+### Style Type

 ```elm
 button: ButtonStyle msg
@@ -32,10 +40,10 @@ button: ButtonStyle msg
     -> Element msg
 ```

-In comparison to Elm-Ui's button, we see  that `List (Attribute msg)` has changed into a _Style Type_. Furthermore, the Style type mirrors the implementation. `element` corresponds to `Element.element`, `elementRow` corresponds to `Element.row` and so on.
+In comparison to Elm-Ui's button, we see  that `List (Attribute msg)` has changed into a _Style Type_. If we look into the Style type, we see that it mirrors the implementation.
   ```
   type alias ButtonStyle msg =
-      { element : List (Attribute msg)
+      { elementButton : List (Attribute msg)
       , ifDisabled : List (Attribute msg)
       , ifActive : List (Attribute msg)
       , otherwise : List (Attribute msg)
@@ -50,40 +58,50 @@ In comparison to Elm-Ui's button, we see  that `List (Attribute msg)` has change
       }
   ```

-** Style Implementation **
+ So the resulting Elm-Ui code looks like this:
+
+ ```
+ button style { onPress, text, icon } =
+    Input.button
+        (style.elementButton
+            ++ (if onPress == Nothing then
+                    style.ifDisabled
+
+                else
+                    style.otherwise
+                )
+        )
+        { onPress = onPress
+        , label =
+            Element.row style.content.elementRow
+                [ icon
+                    (if onPress == Nothing then
+                        style.content.content.icon.ifDisabled
+
+                        else
+                        style.content.content.icon.otherwise
+                    )
+                , Element.text text |> Element.el style.content.content.text.contentText
+                ]
+        }
+ ```
+
+### Styles

 For actually displaying the button we have a few different implementations:

 ``` elm
-{-| Button with only an icon and no text -}
-iconButton :
-    ButtonStyle msg
-    ->
-        { text : String --for screen readers
-        , icon : Icon
-        , onPress : Maybe msg
-        }
-    -> Element msg

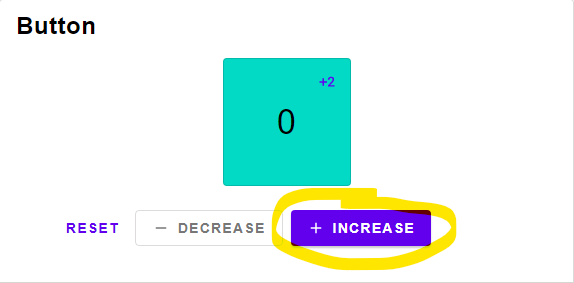

+containedButton : Palette -> ButtonStyle msg
+containedButton =
+    Button.containedButton

-{-| Button with a text but no icon -}
-textButton :
-    ButtonStyle msg
-    ->
-        { textButton
-            | text : String
-            , onPress : Maybe msg
-        }
-    -> Element msg

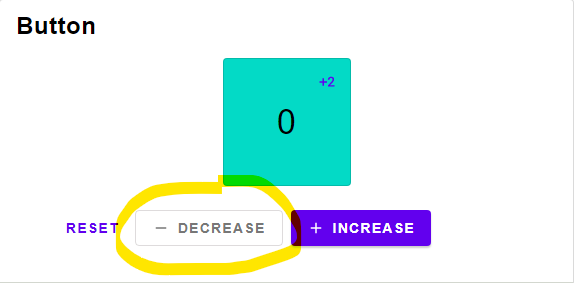

+outlinedButton : Palette -> ButtonStyle msg
+outlinedButton =
+    Button.outlinedButton

-{-| Button with both icon and text -}
-button :
-    ButtonStyle msg
-    ->
-        { text : String
-        , icon : Icon
-        , onPress : Maybe msg
-        }
-    -> Element msg

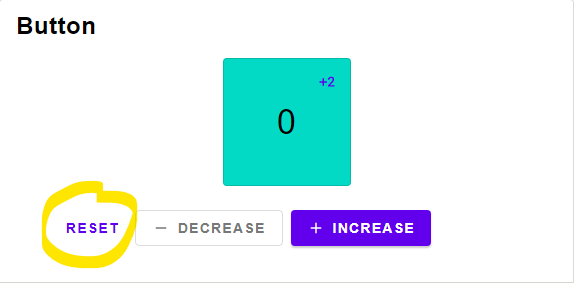

+textButton : Palette -> ButtonStyle msg
+textButton =
+    Button.textButton
 ```

 ** Widget Type **
@@ -126,7 +144,7 @@ Checkout the examples in [Widget](https://package.elm-lang.org/packages/Orasund/
 ## Reusable Views vs. Components

 In Elm we like to use reusable views instead of components.
-At first this packages had a few components, but they where more complicated in comparison. They got slowly turned into reusable views one by one. Most could be reduced even further into _view functions_: Reusable views without a model. All function in [Widget](https://package.elm-lang.org/packages/Orasund/elm-ui-widgets/latest/Widget) are view functions.
+At first this packages had a few components, but they where more complicated in comparison. They got slowly turned into reusable views one by one. Most have been reduced even further into _view functions_: Reusable views without a model. All function in [Widget](https://package.elm-lang.org/packages/Orasund/elm-ui-widgets/latest/Widget) are view functions.

 ## Alternatives


elm.json

@@ -3,7 +3,7 @@
     "name": "Orasund/elm-ui-widgets",
     "summary": "Collection of reusable views for elm-ui.",
     "license": "BSD-3-Clause",
-    "version": "2.3.0",
+    "version": "3.0.0",
     "exposed-modules": [
         "Widget",
         "Widget.Material",

src/Widget.elm

@@ -8,6 +8,8 @@ module Widget exposing
     , RowStyle, row, buttonRow
     , ColumnStyle, column, buttonColumn
     , ItemStyle, Item
+    , FullBleedItemStyle, fullBleedItem
+    , InsetItem, InsetItemStyle, insetItem
     , ExpansionItemStyle, ExpansionItem, expansionItem
     , ImageItemStyle, ImageItem, imageItem
     , MultiLineItemStyle, MultiLineItem, multiLineItem
@@ -20,13 +22,10 @@ module Widget exposing
     , TextInputStyle, TextInput, textInput
     , TabStyle, Tab, tab
     , ProgressIndicatorStyle, ProgressIndicator, circularProgressIndicator
-    , FullBleedItemStyle, InsetItem, InsetItemStyle, fullBleedItem, insetItem
     )

 {-| This module contains different stateless view functions. No wiring required.

-These widgets should be used by defining the styling seperately:
-
     Widget.button Material.primaryButton
         { text = "disable me"
         , icon =
@@ -52,13 +51,13 @@ You can create you own widgets by sticking widgets types together.

 ![Button](https://orasund.github.io/elm-ui-widgets/assets/button.png)

-[Open in Ellie](https://ellie-app.com/9p5QGZ3hgPLa1)
-

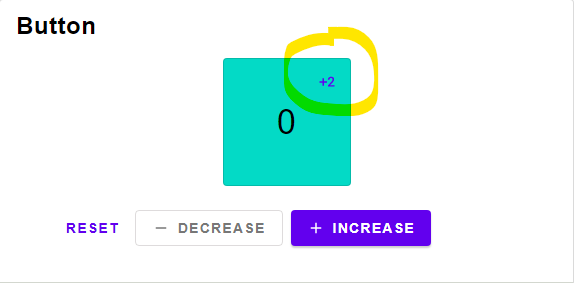

 @docs ButtonStyle, Button, TextButton, iconButton, textButton, button


 # Switch

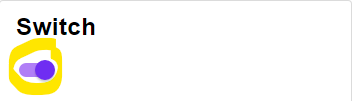

+![Switch](https://orasund.github.io/elm-ui-widgets/assets/switch.png)
+
 @docs SwitchStyle, Switch, switch


@@ -66,19 +65,17 @@ You can create you own widgets by sticking widgets types together.

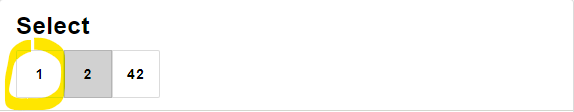

 ![Select](https://orasund.github.io/elm-ui-widgets/assets/select.png)

-[Open in Ellie](https://ellie-app.com/9p5QSzQDMCca1)
-
 @docs Select, selectButton, select

 ![MultiSelect](https://orasund.github.io/elm-ui-widgets/assets/multiSelect.png)

-[Open in Ellie](https://ellie-app.com/9p5R5crjqfya1)
-
 @docs MultiSelect, multiSelect


 # Modal

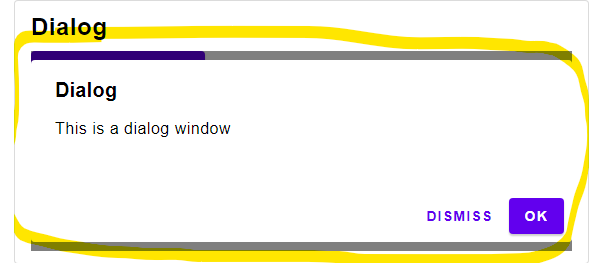

+![Modal](https://orasund.github.io/elm-ui-widgets/assets/modal.png)
+
 @docs Modal, singleModal, multiModal


@@ -110,8 +107,9 @@ You can create you own widgets by sticking widgets types together.

 ## Item

-@docs ItemStyle, FullBleedStyle, Item, item
-@docs TextItemStyle, TextItem, textItem
+@docs ItemStyle, Item

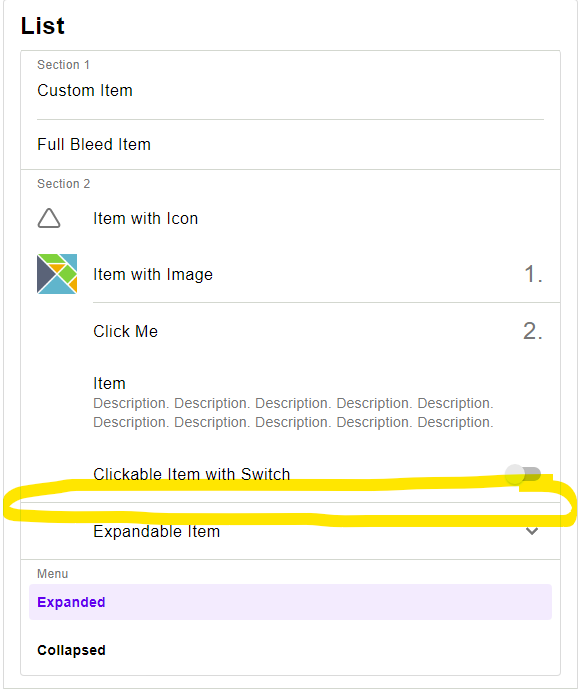

+@docs FullBleedItemStyle, fullBleedItem
+@docs InsetItem, InsetItemStyle, insetItem

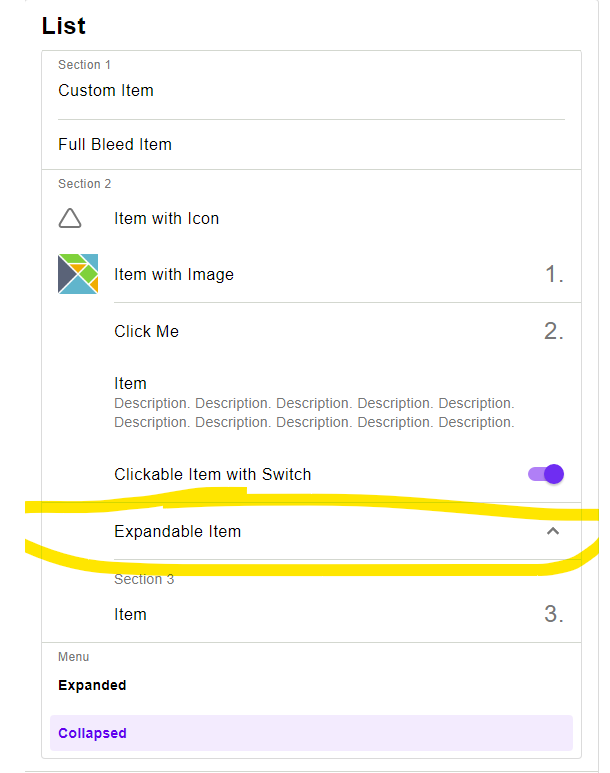

 @docs ExpansionItemStyle, ExpansionItem, expansionItem
 @docs ImageItemStyle, ImageItem, imageItem
 @docs MultiLineItemStyle, MultiLineItem, multiLineItem
@@ -123,6 +121,8 @@ You can create you own widgets by sticking widgets types together.

 # App Bar

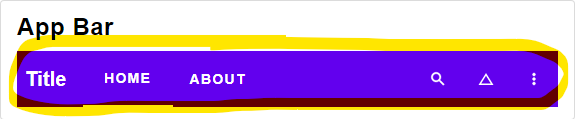

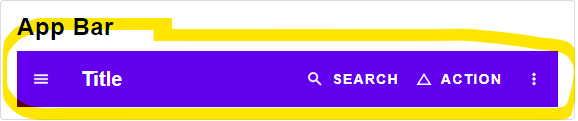

+![App Bar](https://orasund.github.io/elm-ui-widgets/assets/appBar.png)
+
 @docs AppBarStyle, menuBar, tabBar


@@ -130,8 +130,6 @@ You can create you own widgets by sticking widgets types together.

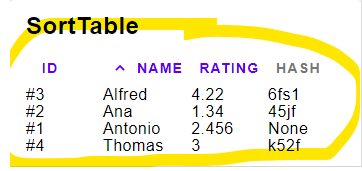

 ![Sort Table](https://orasund.github.io/elm-ui-widgets/assets/sortTable.png)

-[Open in Ellie](https://ellie-app.com/9p5RXw44B4Ja1)
-
 @docs SortTableStyle, SortTable, Column, sortTable, floatColumn, intColumn, stringColumn, unsortableColumn


@@ -139,8 +137,6 @@ You can create you own widgets by sticking widgets types together.

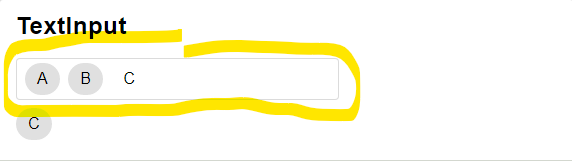

 ![textInput](https://orasund.github.io/elm-ui-widgets/assets/textInput.png)

-[Open in Ellie](https://ellie-app.com/9p5S6cvWCmBa1)
-
 @docs TextInputStyle, TextInput, textInput


@@ -148,8 +144,6 @@ You can create you own widgets by sticking widgets types together.

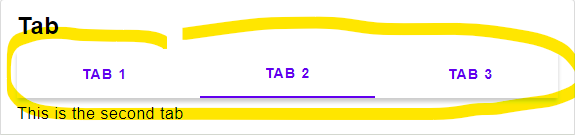

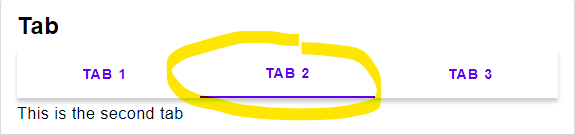

 ![tab](https://orasund.github.io/elm-ui-widgets/assets/tab.png)

-[Open in Ellie](https://ellie-app.com/9p5Sdbvp4jZa1)
-
 @docs TabStyle, Tab, tab


@@ -157,8 +151,6 @@ You can create you own widgets by sticking widgets types together.

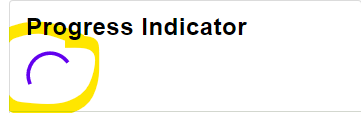

 ![progress Indicator](https://orasund.github.io/elm-ui-widgets/assets/progressIndicator.png)

-[Open in Ellie](https://ellie-app.com/c47GJktH2bqa1)
-
 @docs ProgressIndicatorStyle, ProgressIndicator, circularProgressIndicator

 -}
@@ -572,6 +564,7 @@ multiSelect =
 ----------------------------------------------------------}


+{-| -}
 type alias Modal msg =
     { onDismiss : Maybe msg
     , content : Element msg
@@ -1103,18 +1096,14 @@ headerItem =
         { onPress = Nothing
         , icon = always Element.none
         , text = "Item"
-        , content =
-            \{ size, color } ->
-                Element.none
+        , content = always Element.none
         }

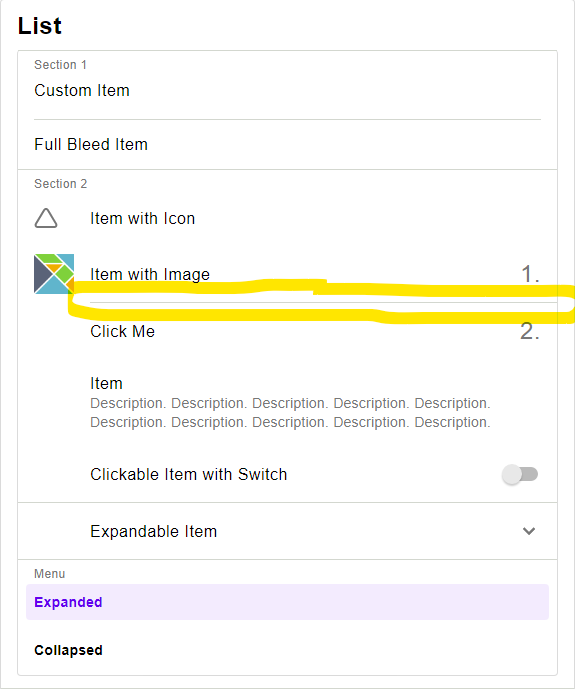

     , Widget.divider (Material.insetDivider Material.defaultPalette )
     , Widget.insetItem (Material.insetItem Material.defaultPalette)
         { onPress = Nothing
         , icon = always Element.none
         , text = "Item"
-        , content =
-            \{ size, color } ->
-                Element.none
+        , content = always Element.none
         }
     ]

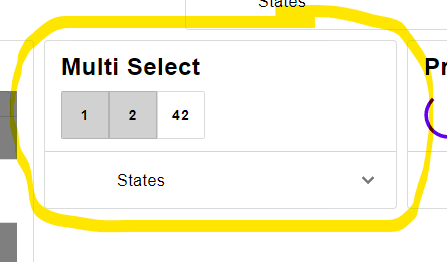

         |> Widget.itemList (Material.cardColumn Material.defaultPalette)
@@ -1149,9 +1138,7 @@ insetItem =
         , onPress = Nothing
         , icon = always Element.none
         , text = "Item"
-        , content =
-            \{ size, color } ->
-                Element.none
+        , content = always Element.none
         }
     ]
         |> Widget.itemList (Material.cardColumn Material.defaultPalette)

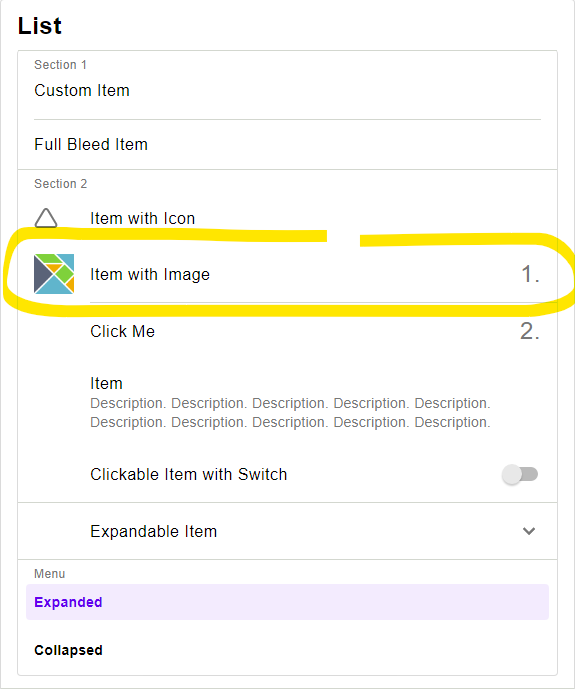

@@ -1228,8 +1215,6 @@ imageItem =

     import Element
     import Widget.Material as Material
-    import Widget.Material.Color as MaterialColor
-    import Element.Font as Font

     type Msg =
         Toggle Bool
@@ -1239,13 +1224,13 @@ imageItem =
         isExpanded =
             True
     in

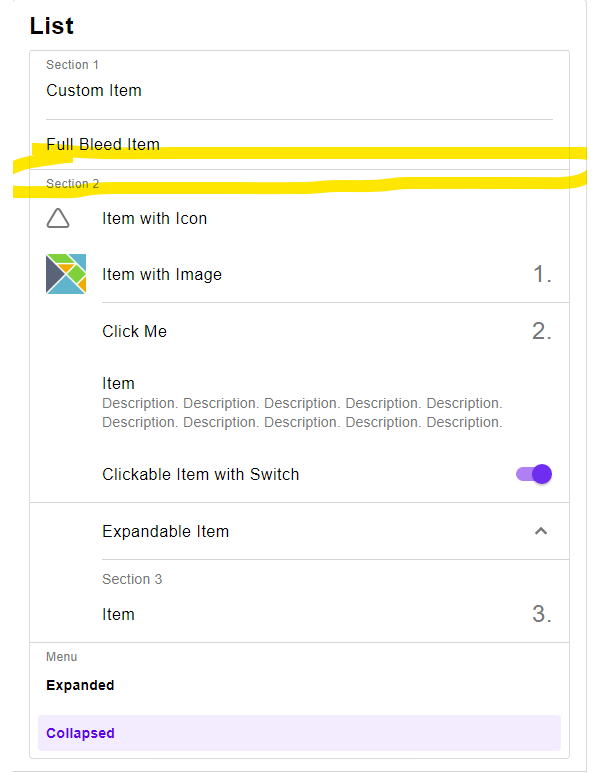

-    (   [ Widget.fullBleedItem (Material.fullBleedItem Material.defaultPalette)
+    (   ( Widget.fullBleedItem (Material.fullBleedItem Material.defaultPalette)
             { onPress = Nothing
             , icon = always Element.none
             , text = "Item with Icon"
             }
-        ]
-        ++ Widget.expansionItem (Material.expansionItem Material.defaultPalette )
+        )
+        :: Widget.expansionItem (Material.expansionItem Material.defaultPalette )
             { onToggle = Toggle
             , isExpanded = isExpanded
             , icon = always Element.none
@@ -1286,8 +1271,6 @@ expansionItem =

     import Element
     import Widget.Material as Material
-    import Widget.Material.Color as MaterialColor
-    import Element.Font as Font

     type Msg =
         Select Int

src/Widget/Customize.elm

@@ -17,21 +17,6 @@ module Widget.Customize exposing

 {-| Each and every widget can be customized by modifing the Style Type.

-    {- Make a button fill the full width -}
-    Widget.textButton
-      ( Material.containedButton
-        |> (\record ->
-             { record
-             | element = record.element ++ [Element.width Element.fill]
-             }
-           )
-      )
-      { onPress = Just PressedButton
-      , text = "Press Button"
-      }
-
-This module will contain helpfull functions to make customization easier.
-
     {- Make a button fill the full width -}
     Widget.textButton
       ( Material.containedButton

src/Widget/Layout.elm

@@ -13,9 +13,13 @@ module Widget.Layout exposing

 It is responsive and changes view to apply to the [material design guidelines](https://material.io/components/app-bars-top).

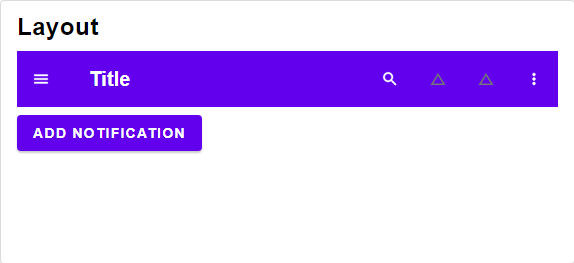

+![Layout](https://orasund.github.io/elm-ui-widgets/assets/layout.png)
+

 # Sheets

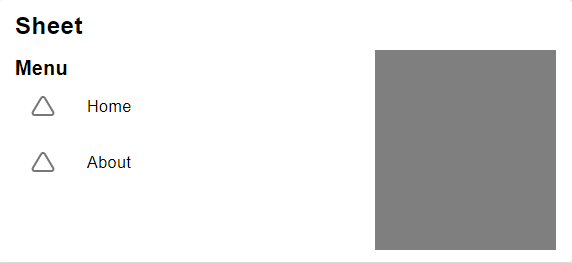

+![Sheet](https://orasund.github.io/elm-ui-widgets/assets/sheet.png)
+
 @docs leftSheet, rightSheet, searchSheet


@@ -35,9 +39,9 @@ import Internal.TextInput as TextInput exposing (TextInput, TextInputStyle)
 import Widget.Customize as Customize


-{-| obtain the Device Calss from a given window.
+{-| Obtain the device class from a given window.

-Checkout Element.classifyDevice for more information.
+Checkout [Element.classifyDevice](https://package.elm-lang.org/packages/mdgriffith/elm-ui/latest/Element#classifyDevice) for more information.

 -}
 getDeviceClass : { height : Int, width : Int } -> DeviceClass
@@ -47,7 +51,7 @@ getDeviceClass window =
         |> .class


-{-| partitions actions into primary and additional actions.
+{-| Partitions actions into primary and additional actions.

 It is intended to hide the additional actions in a side menu.

@@ -175,7 +179,12 @@ searchSheet style { onDismiss, search } =
 {-| Material design only allows one element at a time to be visible as modal.

 The order from most important to least important is as follows:
-dialog -> top sheet -> bottom sheet -> left sheet -> right sheet
+
+1.  dialog
+2.  top sheet
+3.  bottom sheet
+4.  left sheet
+5.  right sheet

 -}
 orderModals :

src/Widget/Material.elm

@@ -18,9 +18,7 @@ module Widget.Material exposing
     , tab, tabButton
     )

-{-| ![Example using the Material Design style](https://orasund.github.io/elm-ui-widgets/assets/material-style.png)
-
-This module implements a Material design theme for all widgets.
+{-| This module implements a Material design theme for all widgets.

 The stylings are following [the official Material Design guidelines](https://material.io/components) as close as possible.
 Please use these widgets in combination with the official guidelines.
@@ -30,7 +28,7 @@ Its recommended to use a font size of 16px width and the [Roboto Font](https://f

 The style are not opaque, so you can change every styling to your needs.

-If you have any suggestions or improvements, be sure to leave a PR or a Issue over at the github repos.
+If you have any suggestions or improvements, be sure to leave a [PR or a Issue](https://github.com/Orasund/elm-ui-widgets/issues) over at the github repos.


 # Palette
@@ -48,7 +46,6 @@ Different styles for buttons have different meanings.
     Use `containedButton` for **the most** important action of the group.

 @docs containedButton, outlinedButton, textButton
-
 @docs iconButton, toggleButton, buttonRow


@@ -120,12 +117,6 @@ You way want to use special items to visually organize the content of your list.

 @docs tab, tabButton

-
-# Advanced
-
-To create your own Material Widgets, here are all internal functions.
-Note that you might want to checkout the [file on GitHub](https://github.com/Orasund/elm-ui-widgets/blob/master/src/Widget/Style/Material.elm) if you want to tweak some internal behaviour.
-
 -}

 import Color exposing (Color)
@@ -227,6 +218,9 @@ darkPalette =


 {-| A contained button representing the most important action of a group.
+
+![containedButton](https://orasund.github.io/elm-ui-widgets/assets/material/containedButton.png)
+
 -}
 containedButton : Palette -> ButtonStyle msg
 containedButton =
@@ -234,6 +228,9 @@ containedButton =


 {-| A outlined button representing an important action within a group.
+
+![outlinedButton](https://orasund.github.io/elm-ui-widgets/assets/material/outlinedButton.png)
+
 -}
 outlinedButton : Palette -> ButtonStyle msg
 outlinedButton =
@@ -241,6 +238,9 @@ outlinedButton =


 {-| A text button representing a simple action within a group.
+
+![textButton](https://orasund.github.io/elm-ui-widgets/assets/material/textButton.png)
+
 -}
 textButton : Palette -> ButtonStyle msg
 textButton =
@@ -251,6 +251,8 @@ textButton =

 Toggle buttons should only be used with the `iconButton` widget, else use chips instead.

+![toggleButton](https://orasund.github.io/elm-ui-widgets/assets/material/toggleButton.png)
+
 Technical Remark:

   - Border color was not defined in the [specification](https://material.io/components/buttons#toggle-button)
@@ -265,6 +267,8 @@ toggleButton =

 {-| An single selectable icon.

+![iconButton](https://orasund.github.io/elm-ui-widgets/assets/material/iconButton.png)
+
 Technical Remark:

   - Could not find any specification details
@@ -283,6 +287,8 @@ iconButton =

 {-| A boolean switch

+![switch](https://orasund.github.io/elm-ui-widgets/assets/material/switch.png)
+
 Technical Remark:

   - The specification states that the disabled switch should have a color dependend on its activness. This is not implemented.

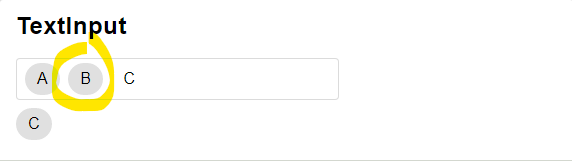

@@ -309,6 +315,8 @@ In the [official documentation](https://material.io/components/chips#types) chip
   - **Filter Chips** are used for selecting multiple options. They typically have a done-icon when selected.
   - **Action chips** are like button. Make sure to include an icon when using action chips.

+![chip](https://orasund.github.io/elm-ui-widgets/assets/material/chip.png)
+
 Technical Remark:

   - Desided against the implementation of an outlined chip.
@@ -326,6 +334,11 @@ chip =
 --------------------------------------------------------------------------------


+{-| An app bar with a menu on the left side
+
+![menuBar](https://orasund.github.io/elm-ui-widgets/assets/material/menuBar.png)
+
+-}
 menuBar :
     Palette
     ->
@@ -338,6 +351,11 @@ menuBar =
     AppBar.menuBar


+{-| An app bar with tabs instead of a menu
+
+![tabBar](https://orasund.github.io/elm-ui-widgets/assets/material/tabBar.png)
+
+-}
 tabBar :
     Palette
     ->
@@ -371,6 +389,9 @@ column =


 {-| A side sheet. Has a maximal width of 360.
+
+![sideSheet](https://orasund.github.io/elm-ui-widgets/assets/material/sideSheet.png)
+
 -}
 sideSheet : Palette -> ColumnStyle msg
 sideSheet =
@@ -392,6 +413,9 @@ bottomSheet =


 {-| A divider covering the full length
+
+![fullBleedDivider](https://orasund.github.io/elm-ui-widgets/assets/material/fullBleedDivider.png)
+
 -}
 fullBleedDivider : Palette -> ItemStyle (DividerStyle msg) msg
 fullBleedDivider =
@@ -399,6 +423,9 @@ fullBleedDivider =


 {-| A divider covering only parts of the width
+
+![insetDivider](https://orasund.github.io/elm-ui-widgets/assets/material/insetDivider.png)
+
 -}
 insetDivider : Palette -> ItemStyle (DividerStyle msg) msg
 insetDivider =
@@ -406,6 +433,9 @@ insetDivider =


 {-| A divider in the center
+
+![middleDivider](https://orasund.github.io/elm-ui-widgets/assets/material/middleDivider.png)
+
 -}
 middleDivider : Palette -> ItemStyle (DividerStyle msg) msg
 middleDivider =
@@ -413,6 +443,9 @@ middleDivider =

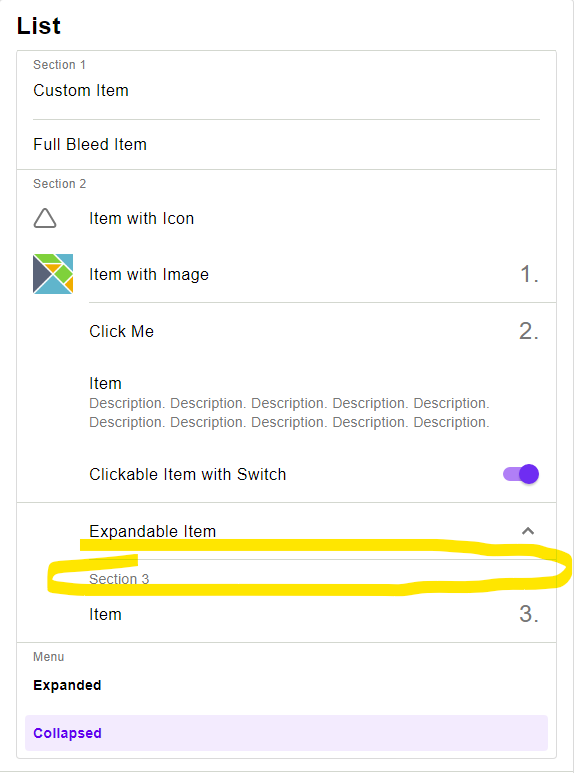

 {-| A header of a section of a list. Comes with a inset divider.
+
+![insetHeader](https://orasund.github.io/elm-ui-widgets/assets/material/insetHeader.png)
+
 -}
 insetHeader : Palette -> ItemStyle (HeaderStyle msg) msg
 insetHeader =
@@ -420,6 +453,9 @@ insetHeader =


 {-| A header of a section of a list. Comes with a full bleed divider.
+
+![fullBleedHeader](https://orasund.github.io/elm-ui-widgets/assets/material/fullBleedHeader.png)
+
 -}
 fullBleedHeader : Palette -> ItemStyle (HeaderStyle msg) msg
 fullBleedHeader =
@@ -428,6 +464,8 @@ fullBleedHeader =

 {-| An expandable item.

+![expansionItem](https://orasund.github.io/elm-ui-widgets/assets/material/expansionItem.png)
+
 Technical Remarks:

   - The Icons are taken from [danmarcab/material-icons](https://dark.elm.dmy.fr/packages/danmarcab/material-icons/latest/).
@@ -442,6 +480,8 @@ expansionItem =

 Only use in combination with `toggleButton`

+![buttonRow](https://orasund.github.io/elm-ui-widgets/assets/material/buttonRow.png)
+
 -}
 buttonRow : RowStyle msg
 buttonRow =
@@ -450,6 +490,8 @@ buttonRow =

 {-| A List styled like a card.

+![cardColumn](https://orasund.github.io/elm-ui-widgets/assets/material/cardColumn.png)
+
 Technical Remark:

 This is a simplification of the [Material Design Card
@@ -461,6 +503,11 @@ cardColumn =
     List.cardColumn


+{-| A basic item containg some text, a button. Spans the full width.
+
+![fullBleedItem](https://orasund.github.io/elm-ui-widgets/assets/material/fullBleedItem.png)
+
+-}
 fullBleedItem : Palette -> ItemStyle (FullBleedItemStyle msg) msg
 fullBleedItem =
     Item.fullBleedItem
@@ -468,10 +515,7 @@ fullBleedItem =

 {-| A basic item containg some text, a button and some additional information.

-Technical Remark:
-
-There are some conflicting informations about the height of an element in the [Specification](https://material.io/components/lists#specs).
-A normal item should be 48 height, but a item with an icon should be 56. This is confusing, because a normal item can also have an additional icon that is the same size.
+![insetItem](https://orasund.github.io/elm-ui-widgets/assets/material/insetItem.png)

 -}
 insetItem : Palette -> ItemStyle (InsetItemStyle msg) msg
@@ -480,6 +524,9 @@ insetItem =


 {-| A text item allowing for more text.
+
+![multiLineItem](https://orasund.github.io/elm-ui-widgets/assets/material/multiLineItem.png)
+
 -}
 multiLineItem : Palette -> ItemStyle (MultiLineItemStyle msg) msg
 multiLineItem =
@@ -490,6 +537,8 @@ multiLineItem =

 If the image is bigger then 40x40, the size of the item will change.

+![imageItem](https://orasund.github.io/elm-ui-widgets/assets/material/imageItem.png)
+
 -}
 imageItem : Palette -> ItemStyle (ImageItemStyle msg) msg
 imageItem =
@@ -497,6 +546,9 @@ imageItem =

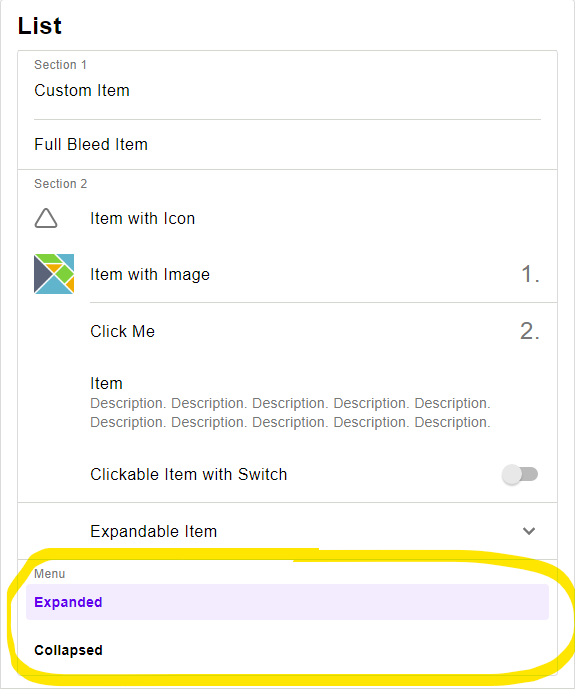

 {-| Displays a selection. This should be combined with Widget.selectItem
+
+![selectItem](https://orasund.github.io/elm-ui-widgets/assets/material/selectItem.png)
+
 -}
 selectItem : Palette -> ItemStyle (ButtonStyle msg) msg
 selectItem =
@@ -510,6 +562,9 @@ selectItem =


 {-| An alert dialog for important decisions. Use a snackbar for less important notification.
+
+![alertDialog](https://orasund.github.io/elm-ui-widgets/assets/material/alertDialog.png)
+
 -}
 alertDialog : Palette -> DialogStyle msg
 alertDialog =
@@ -523,6 +578,9 @@ alertDialog =


 {-| A circular progress indicator
+
+![progressIndicator](https://orasund.github.io/elm-ui-widgets/assets/material/progressIndicator.png)
+
 -}
 progressIndicator : Palette -> ProgressIndicatorStyle msg
 progressIndicator =
@@ -536,6 +594,9 @@ progressIndicator =


 {-| A sortable table
+
+![sortTable](https://orasund.github.io/elm-ui-widgets/assets/material/sortTable.png)
+
 -}
 sortTable : Palette -> SortTableStyle msg
 sortTable =
@@ -550,6 +611,8 @@ sortTable =

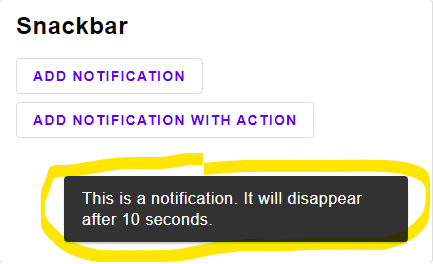

 {-| A typical snackbar

+![snackbar](https://orasund.github.io/elm-ui-widgets/assets/material/snackbar.png)
+
 Technical Remark:

   - The text color of the button was not given in the specification. This implementation
@@ -569,6 +632,8 @@ snackbar =

 {-| A text input style that is included only to support input chips.

+![textInput](https://orasund.github.io/elm-ui-widgets/assets/material/textInput.png)
+
 Technical Remark:

   - This is just a temporary implementation. It will soon be replaced with the official implementation.
@@ -587,6 +652,8 @@ textInput =

 {-| A single Tab button.

+![tabButton](https://orasund.github.io/elm-ui-widgets/assets/material/tabButton.png)
+
 Technical Remark:

   - The official specification states that the background color should be the surface color,
@@ -600,6 +667,9 @@ tabButton =


 {-| A Tab bar meant for only the upper most level. Do not use a tab within a tab.
+
+![tab](https://orasund.github.io/elm-ui-widgets/assets/material/tab.png)
+
 -}
 tab : Palette -> TabStyle msg
 tab =

src/Widget/Snackbar.elm

@@ -7,8 +7,6 @@ module Widget.Snackbar exposing

 A [snackbar](https://material.io/components/snackbars/) shows notification, one at a time.

-[Open in Ellie](https://ellie-app.com/9pz7FqhVW83a1)
-

 # Basics
